PREFERRED_01_REGU[ATION_250_V_D_C

Published:2009/7/20 5:11:00 Author:Jessie | From:SeekIC

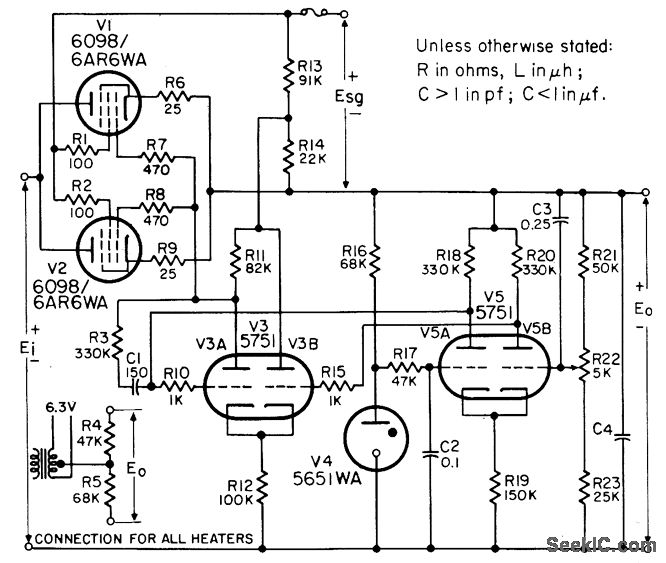

Provides either polarity, for applications requiring superior regulation and stability. Minimum input is 290 v d-c, and minimum Esg is 150 v d-c. Maximum output is 100 ma per series lube. C4 is minimum of 4 mfd.-NBS, Handbook Preferred Circuits Navy Aeronautical Electronic Equipment, Vol. 1, Electron Tube Circuits, 1963, PC 8, p 8-2.
